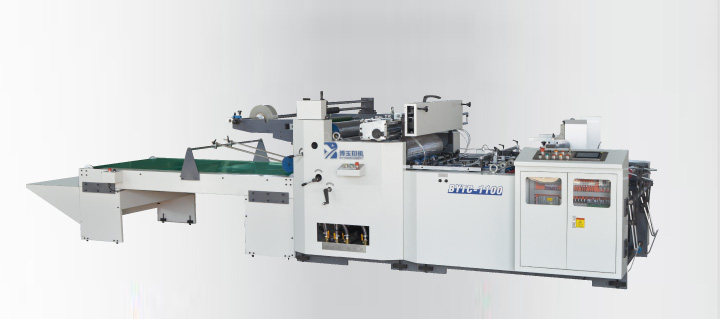

BYTC-1100 Automatic ... machine
.
Main Features
●Window Patching Machine is widely used in the patching to packing paper articles with window or without window,such as,phone box,wine box,napkin box,clothes box,milk box,card etc,also can be used to paste paper onto partial surface of cardboard(paste reinforced paper).
●PLC,man-machine interface,photo-electric tracing and central control are adopted on the machine to realize the automatic functions of paper feeding, conveying,window gluing or the part flat-gluing,part paper-pasting,film cutting gaps,film patching,paper collecting before folding boxes.(Especially the prepared film cutting and creasing inadvance,can avoid furrows when wrap boxes)
●The paper feeding part adopts servo system,realizing precise inchmove,fast-speed paper-feeding,stable working state and excellent precision in operation.
●Using integrated suction belt feeder high accuracy.The registraifion of the window and the film is precise, nearly without error and is able to be adjusted. The whole part is covenient and easy to operate.
●Using a specially designed structure glue, glue evenly, glue size adjustable, save glue, cleaning can be pulled out for easy operation, convenient maintenance.
●This machine is designed specially for the thick film,the piece film is realized automatic feeding,gluing,but patching by operators.
●The change swith is equipped for the rotary film and piece film,easy to operate.
●This machine can be used as a gluing machine too.
●The speed of over-long delivery belt can be controlled separately,and the working station can be set according to your needs.
Specifications
| Max. Paper Size | 650×1100mm |
| Min. Paper Size | 200×200mm |
|
Max. film Size
|
500×380mm |
| Min. film Size | 80×40mm |
| Film Sheet Thickness | 0.05-0.20mm |
| Max. Working Speed | 10000s/h |
| Cardboard | 250-500g/m2 |
| Corrugated Paper | ≤5mm |
| Total Power | 11kw |
| Total Weight | 2680kg |
| Overall Dimensions | 4998×1998×1750mm |
|
Overall Dimensions
(When the roller is pulled out)
|
4998×2998×1750mm
(8000×2998×1750mm)加5m輸送帶
|
Local introduction
-
The Conveying Part -
The gluing Part -
The film feeding Part -
The film-patching Part -
The delivery Part
